New product:

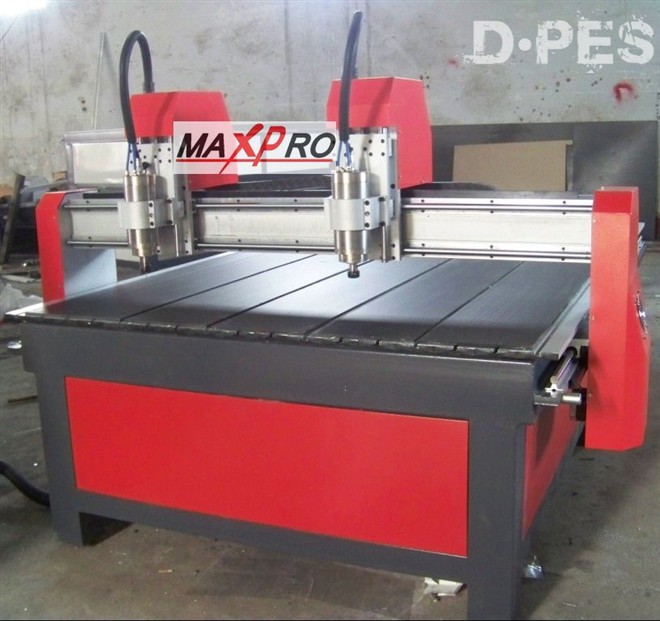

Supply more than one head of maxpro cnc engraver with high efficiency:
specification:
|
X.Y working area
|
1350*2500mm
|
|
z working area
|
150mm
|
|
table size
|
1440*3000mm
|
|
max feeding
|
>20m/min
|
|
processor
|
DSP
|
|
interface
|
USB
|
|
command
|
G code*.u00.mmg*.plt
|
|
surrounding software
|
windows98/2000/xp
|
|
power(not include the spindle)
|
1500W
|
|
power
|
AC380v/50HZ
|
|
main axle power rate
|
3kw/4.5kw
|
|
main axle rotating rate
|
0—24000rpm/min
|
|
work mode
|
steper
|
Other feature:
1. High stability: lathe bed platform casting, supporting dense, bearing force average,
reduce machine distortion
2. High precision: ball screw drive with a high precision, the precision can reach 0.05mm
3.Good compatibility: Compatible software CAD/CAM ,such as Typ3 , ArtCam, Castmate,
UcanCam,Artcut engraving software, Coredraw, etc. It can manufacture fancy embossment,
and 3D arts.
