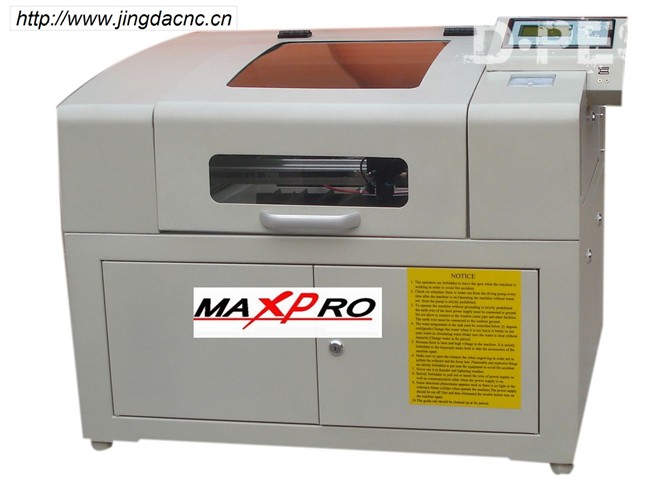

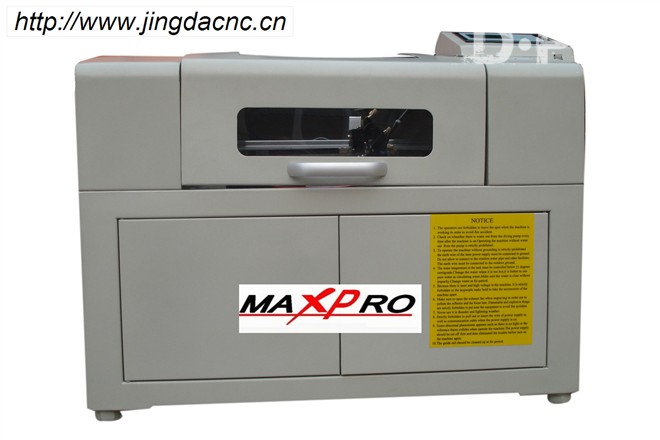

Economical of maxpro4050 laser engraving and cutting machine
|
Model
|
MP-450 Laser Engraving machine
|
|
Processing area
|
400*500mm
|
|
Laser tube
|
50W
|
|
Engraving speed
|
1-60000mm, 1*164 Foot /min,
|
|
Laser type
|
Sealed CO2 laser tube
|
|
Minimum shaping character
|
Chinese :2*2mm; letter: 1*1mm
|
|
Support graphic format
|
DST, PLT, BMP , AI
|
|
Cooling system
|
Water cooling and protection system
|
|
Controlling software
|
DSP control system
|
|
Driving system
|
Stepper
|
|
Power supply
|
110-220V/50HZ
|
|
Operating temperature
|
5 – 40 centigrade degrees
|
|
Operating humidity
|
5%-95% Free of condensed water
|
|
Gross power
|
<1000W
|
|
Operating Syetem
|
98/ME/2000/XP
|
|
Power supply
|
220V/50HZ
|
|
Gross power
|
300W
|
|
Application
|
Stamp,Craft,Advertisement
|
|
Package
|
Fumigation Free wooden case or carton box
|
Information:
MP450 laser engraving System is suitable for art and craft, advertising decoration, toy,
electronic industry, cutting of model, paper product and other industries. It can engrave
on nonmetal materials such as bamboo, putamina of coconut ,paper,plexiglass, acrylic,
marble, jade and crystal. With the rotating unit, this machine can work on a cylinder object
such as cup, pencil, vase and so on.
Characteristic of Laser Engraving System:
1. Japanese technical engine running, making sure the products to run at high speed and high precision.
2. The original binding beeline lead rail, the mechanic is running well and stable.
3. Channel feeding, the feeding can be unlimited.
4. The body of the machine adopts high quality aluminum, professional model and has the specification of
strong and not easy for distortion.
5. The main parts of the electrical line adopts the imported materials, the mainly controlled CMOS chip adopts
double face CPU.
sample
