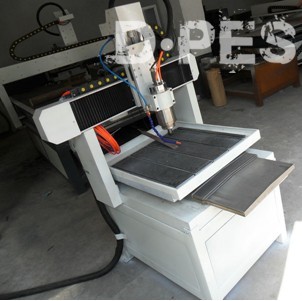

Deatail information of high precision of maxpro Jade carving machine:
|
Model
|
MP-3030
|
MP-6060
|
MP-6090
|
|
X、Y working area
|
300*300mm
|
600*600mm
|
600*900mm
|
|
Z working area
|
>80mm
|
>80mm
|
>80mm
|
|
Table size
|
360*360mm
|
600*600mm
|
750*1150mm
|
|
Max travel speed
|
5m-6m/min
|
5m-6m/min
|
6-8m/min
|
|
Max engraving speed
|
4m-6m/min
|
4-6m/min
|
4-6m/min
|
|
Max feeding height
|
80mm（can be order）
|
|
Resolution rate
|
0.005mm
|
0.005mm
|
0.005mm
|
|
Reposition accuracy
|
0.05mm
|
0.05mm
|
0.05mm
|
|
Command
|
G code*.u00*.mmg*.plt
|
|
Operate system
|
windows98/2000/xp/DSP
|
|
Power(not include spindle)
|
400w
|
500w
|
600w
|
|
Working voltage
|
AC220V/50Hz
|
AC220V/50Hz
|
AC220V/50Hz
|
|
Spindle power
|
0.8/1.5/2.2kw
|
0.8/1.5/2.2kw
|
0.8/1.5/2.2kw
|
|
Spindle speed
|
0-24000rpm/min
|
0-24000rpm/min
|
0-24000rpm/min
|
|
Work mode
|
Stepper
|
Stepper
|
Stepper
|
