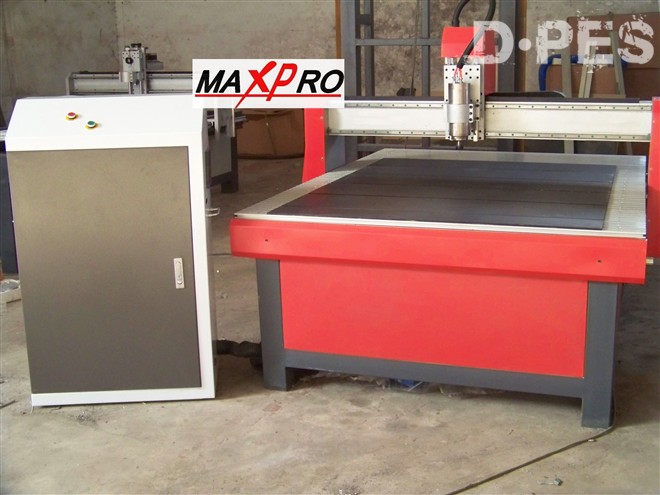

The specification of MP1212 advertising engraver
Model
|
MP-6090
|
MP-1212
|
MP-1218
|
MP-1224
|
XYZ working area
|
600*900*100mm
|
1200*1200*150mm
|
1200*1800*150mm
|
1200*2400*150mm
|
Table size
|
740*1170mm
|
1340*2020mm
|
1340*2020mm
|
1340*2680mm
|
Max travel speed
|
4m-5m/min
|
4m-5m/min
|
5m-6m/min
|
5m-7m/min
|
Max engraving speed
|
2m-3m/min
|
2m-3m/min
|
3m-3.5m/min
|
3m-3.5m/min
|
Resolution ratio
|
0.005mm
|
Reposition accuracy
|
0.05mm
|
Drive system
|
Ball screw, round guide rail
|
Work-holding
|
By fixture
|
Operation system
|
Windows98/2000/xp
|
Command
|
G*Code.u00*.mmg*.plt
|
Control system
|
Ncstudio/DSP
|
Voltage
|
AC220V/50Hz
|
Spindle power
|
1.5/2.2KW
|
Spindle rotating speed
|
0-24000rpm/min
|
Work mode
|
Stepper
|
l High stability: lathe bed platform casting, supporting dense, bearing force average, reduce machine distortion
l High precision: ball screw drive with a high precision, the precision can reach 0.05mm

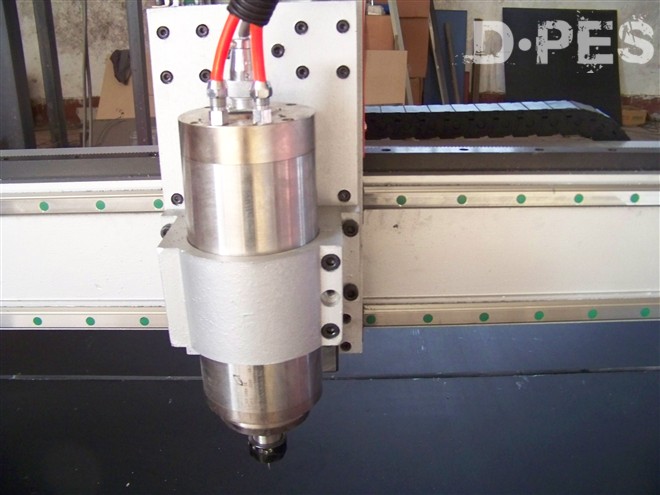

l High quality parts: using the line round guide, high precision; X rail adopt pop dustproof structure, ensure the
machine has a long-term operation; spindle is water cooling,low noise,good cooling effect。
l Good compatibility: Compatible software CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut
engraving software, Coredraw, etc. It can manufacture fancy embossment, and 3D arts.
