1.High stability: lathe bed platform casting, supporting dense, bearing force average, reduce machine
distortion. heavy style machine, weight capacity is stronger than the ordinary frame.

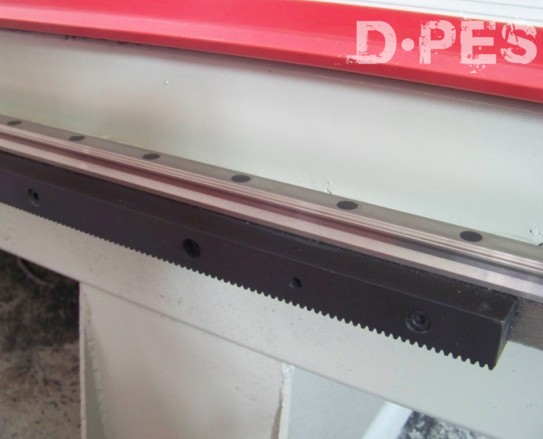

2.High speed: Rack pinion drive with a high speed. The highest speed can reach 20m/min
3. High quality parts: using line square guide rail, high abrasive resistance, long life time, Rack pinion
has a high speed, X rail adopt pop dustproof structure, ensure the machine has a long term operation;

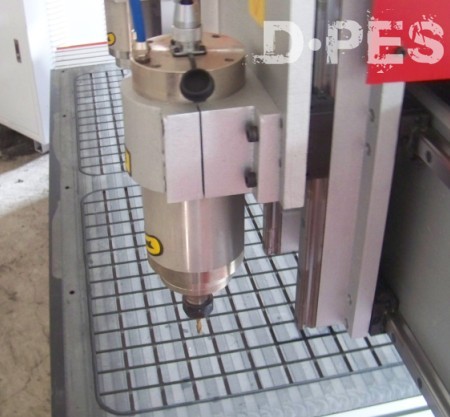

spindle is water cooling，low noise, good cooling effect..
4. Reasonable design: Y rail using double motor drive, high speed and strength, cutting section smooth
bright and clean
5. Good compatibility: Compatible software CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,
Artcut engraving software, Coredraw, etc. It can manufacture fancy embossment, and 3D arts.
|

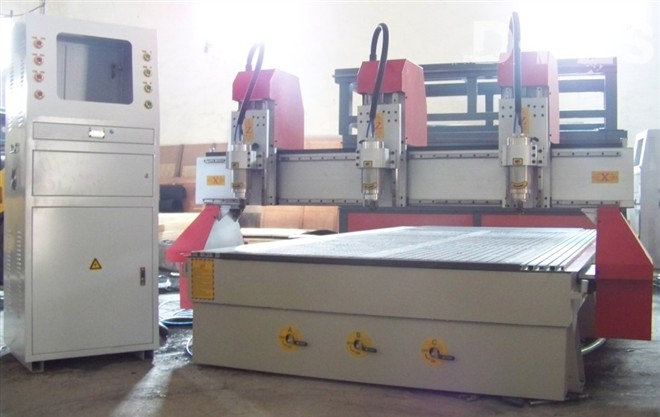

Model
|
MP-1325
|
|
X Y working area
|
1350*2500mm
|
|
Z working area
|
200mm（optional）
|
|

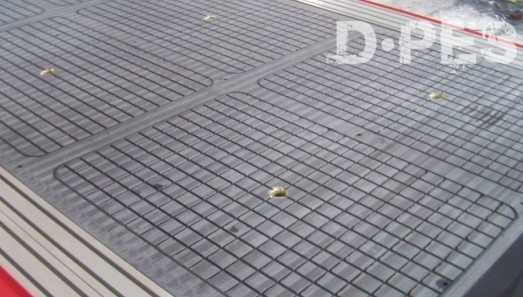

Table size
|
1440*3000mm
|
|
Drive model
|
Rack pinion
|
|
Guide rail
|
Square guide rail
|
|
Max travel speed
|
>20m/min
|
|
Max engraving speed
|
15m/min
|
|
Work-holding
|
By fixture
|
|
Control system
|
Ncstudio/DSP
|
|
Dust collection
|
With
|
|
Lubrication
|
With
|
|
Interface
|
USB
|
|
Command
|
G*Code.u00*.mmg*.plt
|
|
Operation system
|
Windows98/2000/XP
|
|
Power(nor include the spindle)
|
1500W
|
|
Voltage
|
AC380V/50Hz
|
|
Spindle power
|
3KW/4.5KW
|
|
Spindle rotating speed
|
0-24000rpm/min
|
|
Word mode
|
Stepper
|
