Item
|

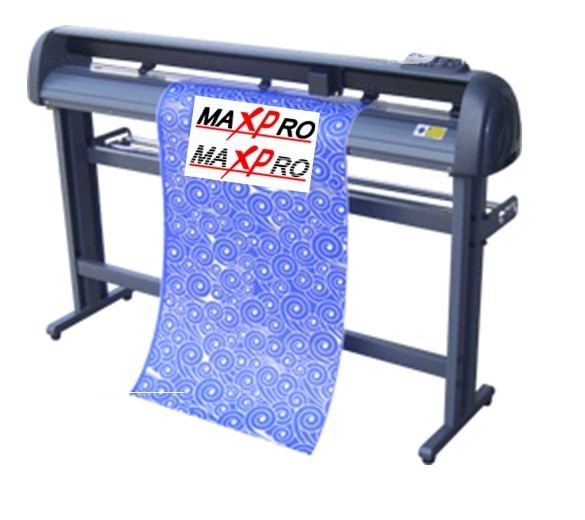

MAXPRO1350SV
|
|
Straight-line Speed
|
50-960mm/s
|
|
Curve speed
|
50-600mm/s
|
|
Motor& Driver
|
DC servo
|
|
Motor power
|
25watt
|
|
Servo motor speed
|
0-3500RPM
|
|
0-3000RPM time
|
< 20 M(idle load); <1200 MS(working)
|
|
Encoder signal
|
physical 1000line/ round, logical 4000line/round
|
|
Force
|
50-750g(10g/step)
|
|
Memory
|
512K/4MB
|
|
CPU
|
64bit DSP 32MFlash
|
|
Mechanical Resolution
|
0.01254mm/pulse
|
|
Repeating Precision
|
0.082mm
|
|
Interface
|
RS-232 / USB
|
|
Format
|
DMPL/HPGL
|
|
Power
|
AC110V-240V / 50-60HZ 6A
|
|
Machine power
|
< 100watt
|
|
Operation acoustic noise level
|
65 dB (A) or less
|
|
Standby acoustic noise level
|
30 dB (A) or less
|
|
Environmental temperature
|
2 - 35℃
|
|
Environmental Humidity
|
30％－70％（no congeal water)
|
|
Max. feeding Width
|
1350mm
|
|
Max. cutting width
|
1260mm
|
|
Packing
|
1pcs/inner 1pcs/export carton
|
|
Meas
|
162x34x42cm
|
|
G.W./N.W.
|
38/35kgs
|
● High cutting force
● Fast cutting speed
● Plug-in software is very easy for using
● 750g maximum cutting force for cutting thick material easily.
● The plug-in software allows cut from Illustrator, Corel Draw, AutoCAD， Word, Excel etc. directly, it’s very convenient for users.
