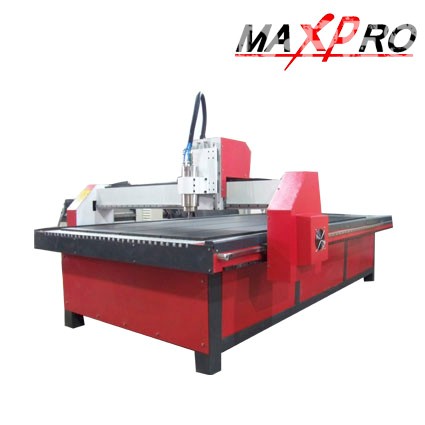

Model
|
MP-1325
|
|
X Y working area
|
1350*2500mm
|
|
Z working area
|
200mm（optional）
|
|
Table size
|
1440*3000mm
|
|
Drive model
|
Rack pinion
|
|
Guide rail
|
Square guide rail
|
|
Max travel speed
|
>20m/min
|
|
Max engraving speed
|
15m/min
|
|
Work-holding
|
By fixture
|
|
Control system
|
Ncstudio/DSP
|
|
Dust collection
|
With
|
|
Lubrication
|
With
|
|
Interface
|
USB
|
|
Command
|
G*Code.u00*.mmg*.plt
|
|
Operation system
|
Windows98/2000/XP
|
|
Power(nor include the spindle)
|
1500W
|
|
Voltage
|
AC380V/50Hz
|
|
Spindle power
|
3KW/4.5KW
|
|
Spindle rotating speed
|
0-24000rpm/min
|
|
Word mode
|
Stepper
|
1. XYZ rails all are rack pinion. Z rail is more quick than

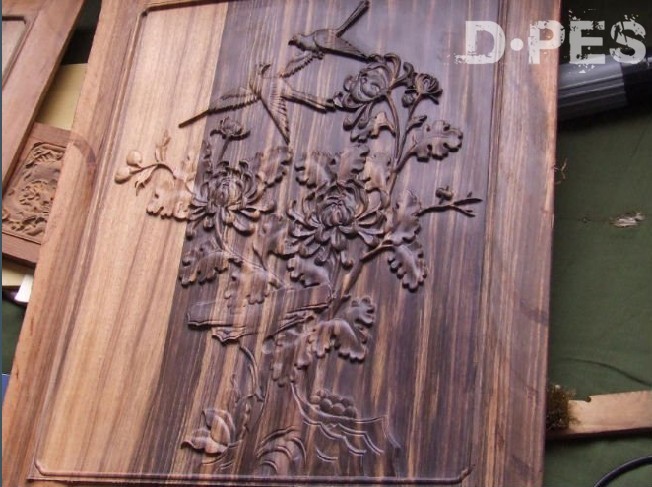

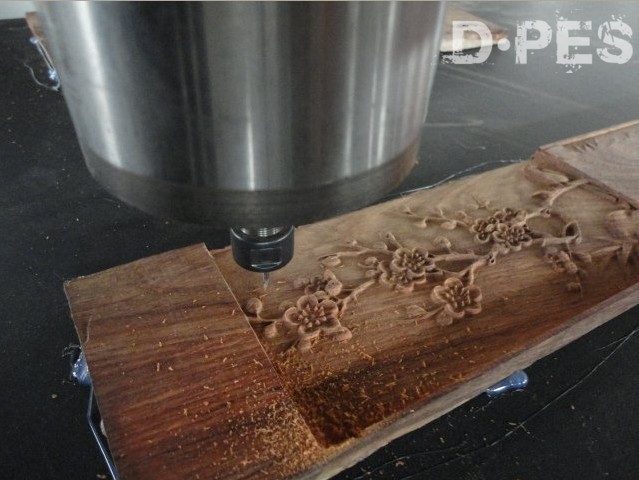

the ball screw. It’s special used for relief engraving.
2. This is a new style machine. The lathe bed and the frame
is dismountable. It’s easy to transport.
